Bottom Load · Hot/Normal/Cold · 580W

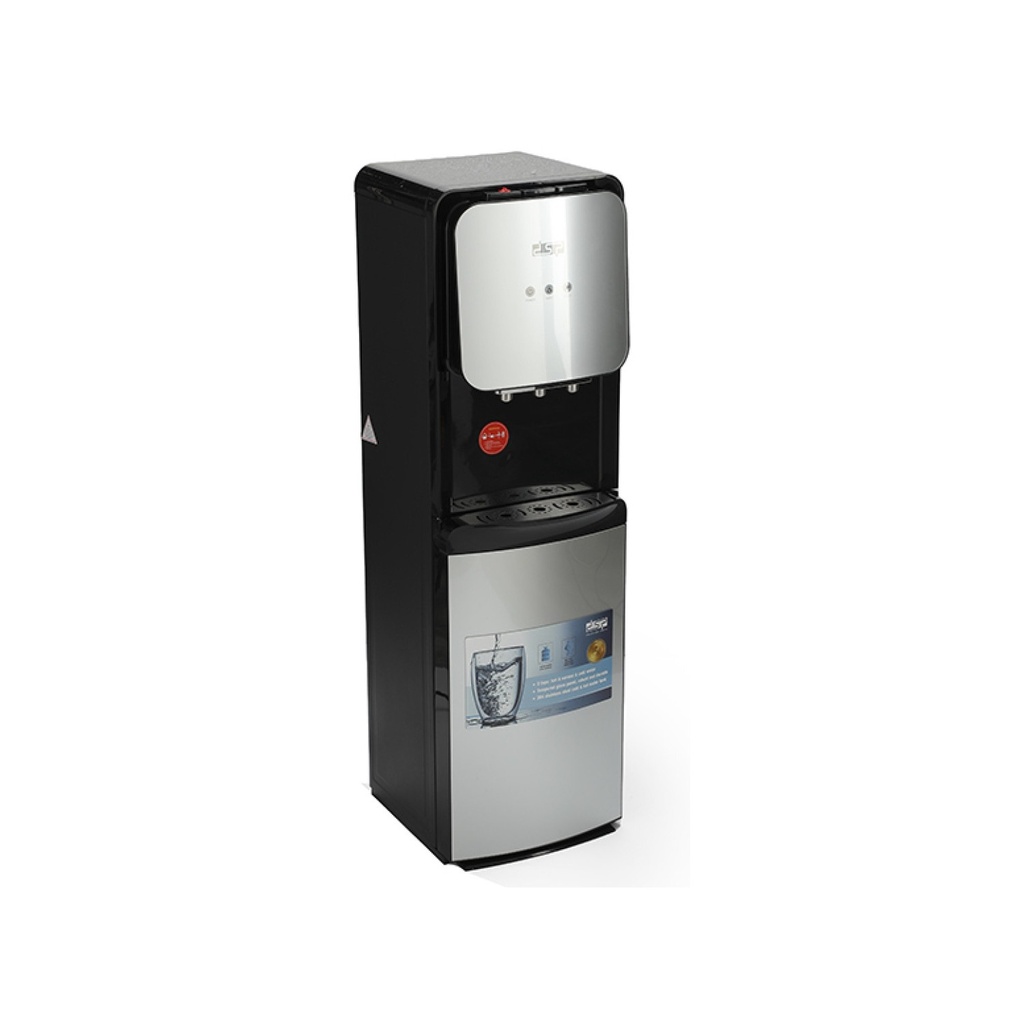

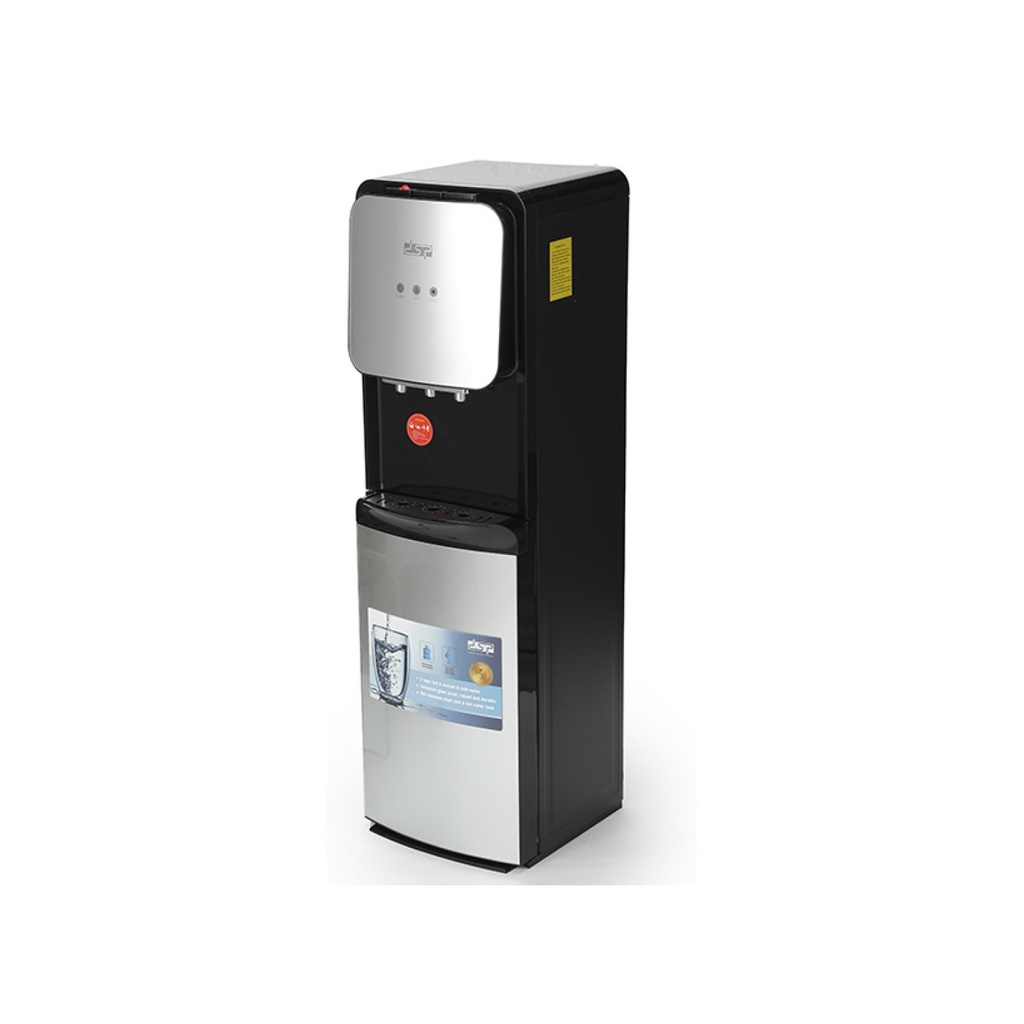

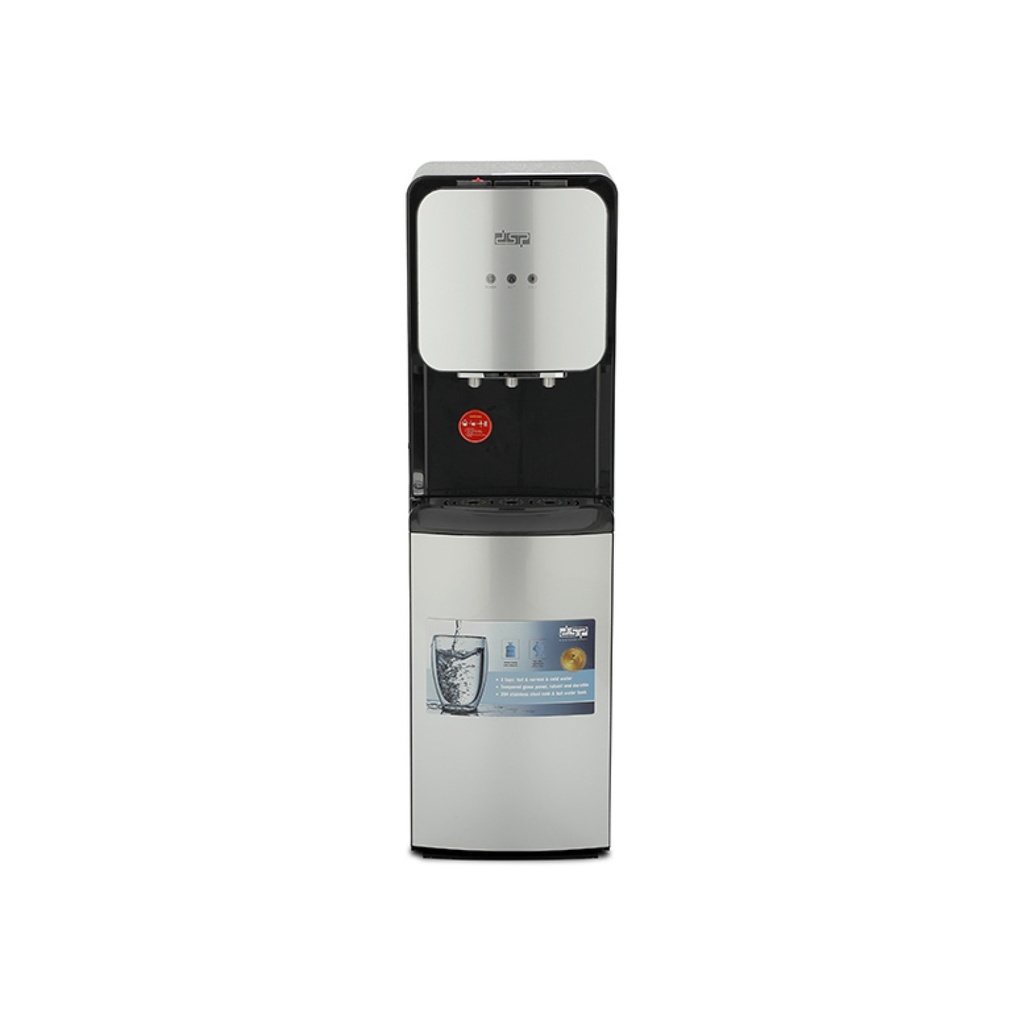

DSP Water Dispenser KK-3025 Bottom Load — Hot / Normal / Cold
Serve hot, room and ice-cold water without lifting heavy bottles — the DSP KK-3025 bottom-load dispenser hides the bottle inside its lower cabinet for easy swaps and a clean look. Three front taps deliver hot (85–95°C), normal and cold (5–10°C) water from 304 stainless steel tanks, with a child safety lock on the hot tap and a removable drip tray. A 580W heater and 90W DANFU compressor keep supply continuous for offices, shops and home kitchens.
580W / 90W
Heat / Cool Power3 Taps
Hot · Normal · Cold🚰
3 Taps Hot/Normal/Cold
Hot 85–95°C, room and chilled 5–10°C on demand.
📦

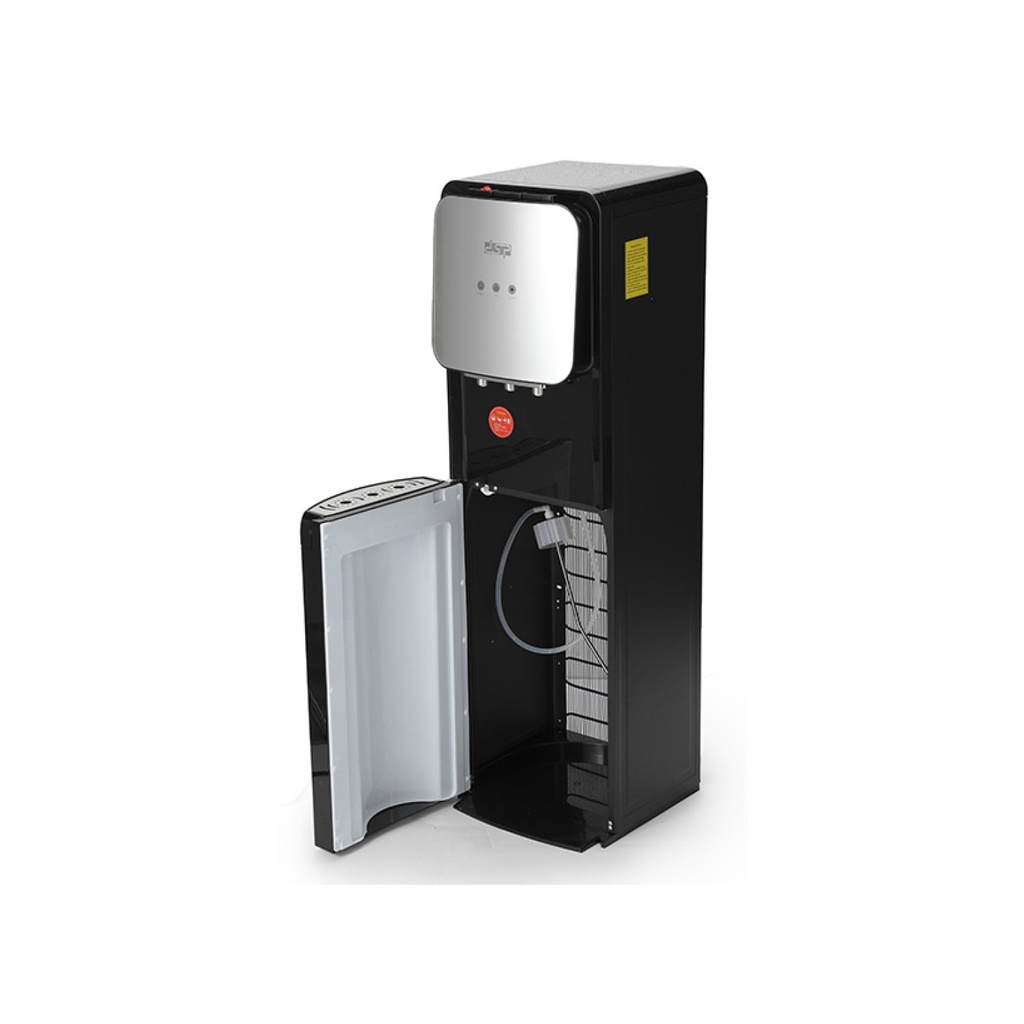

Bottom-Load Cabinet
Bottle hides inside — no heavy lifting overhead.
🔒
Child Safety Lock
Hot tap lock guards kids against scalds.
❄️
580W Heat + 90W Cool
Fast heating, DANFU compressor cooling, 304 steel tanks.
🏢
Office-Ready Tower
310×330×1040 mm freestanding with drip tray.
Technical Specifications
| Brand | DSP |
|---|---|
| Model | KK-3025 |
| Product Type | Bottom-Load Water Dispenser |
| Configuration | Bottom Load, Freestanding |
| Water Temperatures | Hot / Normal / Cold (3 Taps) |
| Hot Water Output | >2.5 L/h, 85–95°C |
| Cold Water Output | >1.5 L/h, 5–10°C |
| Heating Power | 580W |
| Cooling Power | 90W |
| Hot Tank | 0.9 L, 304 Stainless Steel |
| Cold Tank | 3.3 L, 304 Stainless Steel |
| Compressor | DANFU, Refrigerant R134a |
| Tube | Food-Grade Silicone |
| Safety | Hot-Tap Child Safety Lock |
| Drip Tray | Removable, 304 Stainless Lid + ABS Shell |
| Indicators | Heating + Cooling Lights |
| Body | Tempered Glass Panel + ABS |
| Voltage | 220–240V ~ 50/60Hz |
| Dimensions | 310 x 330 x 1040 mm |
| Colour | Black + Silver |
Ideal For
- ▪Office pantries and reception areas
- ▪Small workplaces and shops
- ▪Home kitchens needing hot + cold
- ▪Tea and instant-coffee stations
- ▪Clinics and waiting rooms
Setup & Safe Use
- Load Bottle: Open the lower cabinet, slide the bottle in and connect the tube.
- Power On: Switch heating and cooling on; wait for indicator lights.
- Dispense: Press Hot (with safety lock), Normal or Cold tap.
- Care and Safety: Empty and rinse the drip tray, keep vents clear, use 220–240V.
